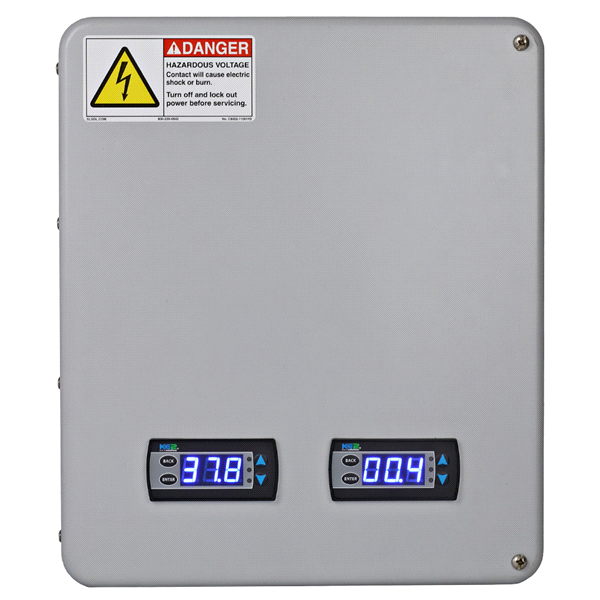

KE2 Evap Lead/Lag Panel

Lead/Lag panel for redundant systems using two KE2 Evap OEM controls. Alternate systems via set time or every other refrigeration run cycle.

This KE2 Evap Panel contains double KE2 Evap OEM controls for easy setup of lead/lag redundant systems. It is also ideal for control of a system with two evaporators, or a combo freezer/cooler walk-in. The lead/lag control is built-into the firmware of the controllers, communicating to each other over Ethernet, and requires no external timer or input for the lead/lag function. This eliminates the complexity usually involved in setting up redundant systems. Options for switching between the systems include time based redundant modes, and an alternate mode that swaps systems every run cycle.

Read Less

Product Type	Temperature and Defrost Controls
Min. Operating Temp. (F)	-40
Max. Operating Temp. (F)	140
Compliance Listing	CA Title 24
Environmental Listing	NEMA 1
Regulatory Listing	UL508
Voltage Rating	100-240
Alarm Option	Display, Email, Text with KE2 SmartAccess, Buzzer w/KE2 Combo Display, Alarm Relay w/KE2 Combo Display
Communication	KE2 SmartAccess, Ethernet TCP/IP, RESTful JSON API, BACnet/IP with KE2-EM
Datalogging	30 Days Built-in, 365+ Days with KE2-EM
Fan Motor Control	KE2 Adaptive Fan Management, Fixed Speed, Variable Speed
Defrost Type	Air, Electric, Hot Gas
Defrost Initiation	Demand, Time, Runtime
Refrigerants	R-404A, R-507, R-407A, R-407C, R-134a, R-22, R-717, R-290, R-438A, R-410A, R-744, R-448A, R-449A, R-454A, R-454C, R-455A
Valve Control	Thermostatic Expansion Valve (TEV), Electric Expansion Valve (EEV), Pulse Width Modulation (PWM)
Application Type	Walk-in Cooler, Walk-in Freezer, Refrigerated Warehouse, Refrigerated Production Area, Blast Freezer
Part Number	21959

Want to learn more? Interact with our demonstration dashboard.

Try it Out

PRODUCT INFORMATION

Spec Sheets

Document Type	Description	Updated	View	Download	Email
Spec Sheet	Specifications – KE2 Auxiliary Relay Board // Q.7.54	12/1/2017	View	Download	Email
Spec Sheet	Submittal Sheet – KE2 Evap OEM // A.9.69F	3/1/2023	View	Download	Email
Spec Sheet	Specifications – N/O Solid State Relay // Q.7.75	6/1/2022	View	Download	Email

Photometry & Revit (BIM)

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Installation Instructions		Multi Evap Applications – KE2 Evap OEM // Q.1.45-A	12/1/2022	View	Download	Email
Installation Instructions		Quick Start Guide – KE2 Evap OEM // Q.1.45	11/1/2024	View	Download	Email
Installation Instructions		Quick Start Guide – KE2 Evap Panel // Q.1.77	2/1/2023	View	Download	Email
Trouble Shooting Guide		Alarm Troubleshooting Guide – KE2 Evap OEM // Q.1.61	1/1/2023	View	Download	Email
Trouble Shooting Guide		How to Reset Password – KE2 Evap OEM // Q.1.46-A	12/1/2021	View	Download	Email
Trouble Shooting Guide	How to: Direct Connect to your KE2 Therm Controller // Q.5.11	How to: Direct Connect to your KE2 Therm Controller // Q.5.11	2/1/2022	View	Download	Email
User Manual		Webpage Screens – KE2 Evap OEM // Q.1.46	1/1/2022	View	Download	Email

Utility Rebate Search
Replacement Parts
Confidential Documents

Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

Document Type	Document Title	Description	Updated	View	Download	Email
Brochures		General Product Information – KE2 Evap Panel // B.1.16	5/1/2024	View	Download	Email

Archived Documents

Document Type	Document Title	Description	Updated	View	Download	Email
Brochures	(Archived)	General Product Information – KE2 Evap Lead/Lag Panel // B.1.16 (Archived)	1/1/2023	View	Download	Email
